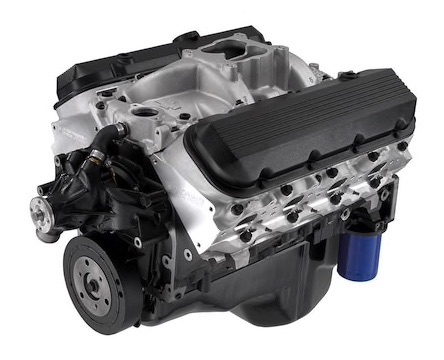

Chevrolet Performance ZZ454/440 Crate Engine

Chevrolet Performance took the tough 454 HO and matched it with a set of higher-flow, oval-port aluminum cylinder heads to pick up an additional 30 horses.

Aluminum oval-port cylinder heads are mounted on our latest-generation block casting with four-bolt main caps, which is filled with an all-forged rotating assembly for exceptional strength and durability. There is also a high-lift hydraulic roller camshaft for excellent drivability and a broad performance range.

The crate engine package includes a water pump, balancer, aluminum intake manifold and 14” flexplate.

Call for Pricing

Part # 19331574

*Price Subject to Change without notice*

**Price is Valid for Cash/Check Purchases Only**

All GM Performance Parts Crate Engines includes a 24-Month or 50,000 Mile Limited Warranty through GM Performance Parts.

Tech Specs
Part Number:19331574
Horse Power:469 hp @ 5,500 rpm
Torque:519 lb.-ft. @ 3,700 rpm
Engine Type:Chevy Big-Block V-8
Displacement (cu in):454
Bore X Stroke (in):4.250 x 4.000
Block:Cast-iron with four-bolt main caps
Crankshaft:Forged steel
Connecting Rods:Forged steel
Pistons:Forged aluminum
Intake Manifold:Dual plane
Camshaft Type:Hydraulic roller
Valve Lift (in):.510 intake / .540 exhaust
Camshaft Duration (@ 0.050 in):211° intake / 230° exhaust
Cylinder HeadsAluminum oval port; 110-cc chambers
Valve Size (in):2.190 intake / 1.880 exhaust
Compression Ratio:9.6:1
Rocker Arms (intake):Stamped steel
Rocker Arms (exhaust)Stamped steel
Rocker Arms Ratio:1.7:1
Water Pump:Cast-iron, long-style
Recommended Fuel:Premium unleaded
Ignition Timing:36° Total @ 4,000 rpm
Maximum Recommended RPM:5500
Balanced:External
Flexplate:14"
